Getting started

The X-LAB Plotting Manager is a PyQt-based desktop application for managing scientific data and generating publication-ready plots.
It is designed around a clean separation between:

  • Core GUI + contracts (this repository), and
  • Device/experiment-specific implementations (separate package you provide)

Install the software

For instructions on installation see the installation page.

✨ Make sure that you have an implementations module ready before proceeding. This can be done by writing your own or by cloning the provided implementation.

🚀 Launch the GUI

You can launch the GUI from your favourite IDE by pointing to gui.windows.MainWindow or by running the following command from the terminal:

python -m gui.windows.MainWindow

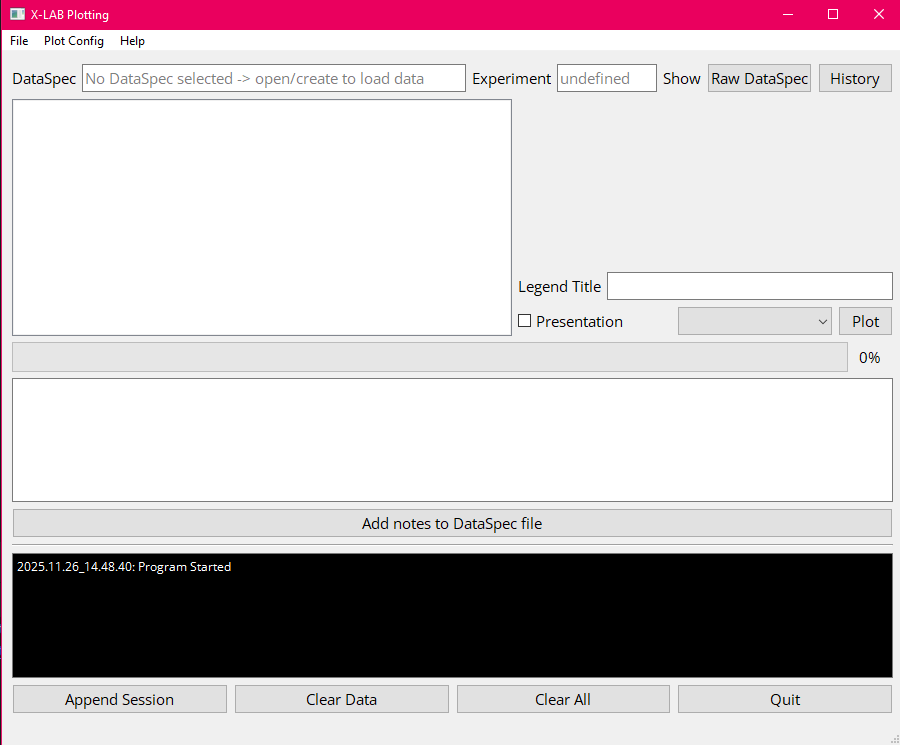

This opens the main application window:

MainWindow

📦 Creating a Dataset

From the menu bar:

File → Create Set

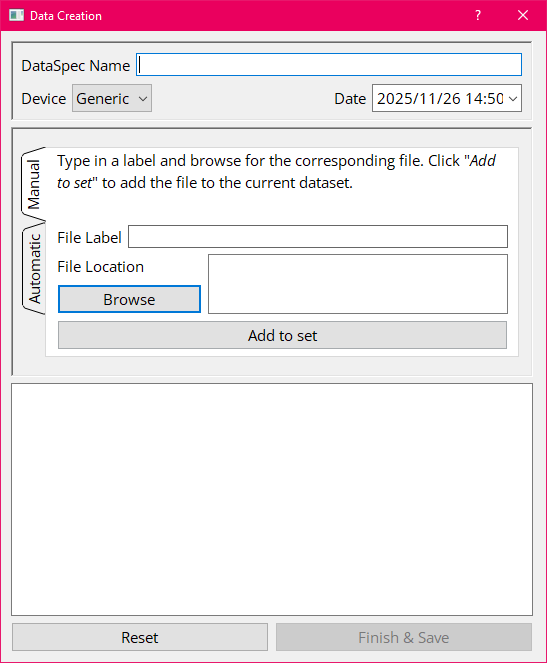

This opens the Data Creation Window, where you build datasets based on structured datasets that define required data inputs and metadata.

DataCreationWindow

📉 Generating a plot

Once you have created a DataSet, it will appear in the main window with a list of the available data, the device information is already loaded. From here, generating a plot is quick and interactive.

1️⃣ Select the Files You Want to Plot

The application is already aware of - the available plot types for the device associated with the set - the associated Data and DataProcessor types (from the implementations module) - all device-specific options on the right are loaded from the correct widget

Inside the Set Contents panel, tick the files you want to include. You can select:

  • a single file (e.g., one heatmap, one IV curve), or\
  • multiple files (for overlays, comparisons, etc.), depending on your device's capabilities.

This compatibility logic comes directly from how your device's DeviceWorker and Plotter implementations declare supported plots.

2️⃣ Adjust Plot Options

The Options panel on the right shows all customizable parameters for the chosen plot. This panel is defined by the widget for each device, meaning your implementation decides what appears here.

Common options include:

  • z-ranges, profiles
  • normalisation
  • etc.

Two options are always available: - legend title - presentation

I use the latter to format my plots to be clearer in a presentation context where I want line traces to be thicker for example. These options are gathered automatically into a PlotterOptions object: Plotters retrieve these values using:

options.get_option("legend_title")

For example, a heatmap plotter can use these options to configure colour scales, ranges, and layout.

3️⃣ Choose a Plot Type

Open the Plot Type dropdown.

Examples: - A 2D scan might enable plot_image and plot_distribution - A time-varying measurement might enable plot - IV measurements might enable plot_forward or plot_forward_and_reverse

Internally, the selected plot corresponds to a method defined inside your device's worker. This makes the system extensible: any worker method named plot_* can become a selectable plot.

4️⃣ Click Plot

Press the Plot button to start a worker and generate the visualisation.

Behind the scenes, the GUI:

  1. Instantiates the device's worker
  2. Sends it:
    • a rebuilt DataSet containing the selected files
    • the plot type
    • a PlotterOptions instance
  3. Moves the worker into a background QThread
  4. Begins file reading (shown in the progress bar) and processing

Each selected file is read using your concrete Data subclass and associated file reader (self.file_reader()) and processed with your DataProcessor subclass (get_data(), derived observables, validation).

A progress bar updates live, and the plot is drawn once the worker emits its finished signal.

5️⃣ Enjoy Your Plot

Depending on your plotter implementation:

  • Plotly figures may open interactively (zoom, hover, export)\
  • Static plots can be saved as SVG/PNG/PDF\
  • Additional export helpers may run automatically
